Quality Requirements Edition 5.0 European Enamel Association

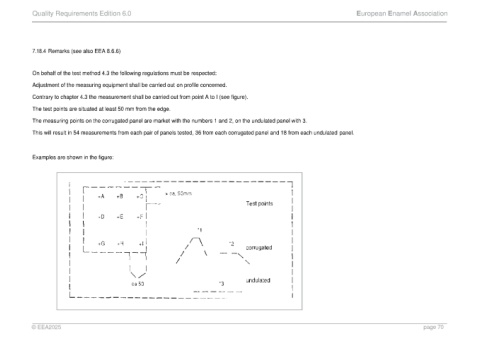

7.18.4 Remarks (see also EEA 8.6.6)

On behalf of the test method 4.3 the following regulations must be complied with.

Adjustment of the measuring equipment shall be carried out on profile concerned.
Contrary to chapter 4.3 the measurement shall be carried out from point A to I (see figure).
The test points are situated at least 50 mm from the edge.
The measuring points on the corrugated panel are market with the numbers 1 and 2, on the undulated panel with 3.
This will result in 54 measurements from each pair of panels tested, 36 from each corrugated panel and 18 from each undulated panel.

Examples are shown in the figure.
