Quality Requirements Edition 5.0 European Enamel Association

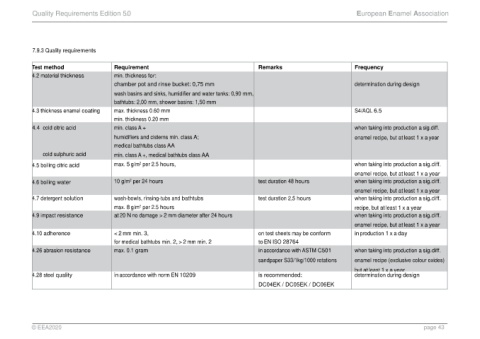

7.9.3 Quality requirements

Test method Requirement Remarks Frequency
4.2 material thickness min. thickness for:

chamber pot and rinse bucket: 0,75 mm determination during design

wash basins and sinks, humidifier and water tanks: 0,90 mm,
bathtubs: 2,00 mm, shower basins: 1,50 mm
4.3 thickness enamel coating max. thickness 0.60 mm S4/AQL 6.5
min. thickness 0.20 mm
4.4 cold citric acid min. class A + when taking into production a sig.diff.
humidifiers and cisterns min. class A; enamel recipe, but at least 1 x a year

medical bathtubs class AA
cold sulphuric acid min. class A +, medical bathtubs class AA

2
4.5 boiling citric acid max. 5 g/m per 2.5 hours, when taking into production a sig.diff.

enamel recipe, but at least 1 x a year
2
4.6 boiling water 10 g/m per 24 hours test duration 48 hours when taking into production a sig.diff.

enamel recipe, but at least 1 x a year
4.7 detergent solution wash-bowls, rinsing-tubs and bathtubs test duration 2,5 hours when taking into production a sig.diff.

2
max. 8 g/m per 2.5 hours recipe, but at least 1 x a year
4.9 impact resistance at 20 N no damage > 2 mm diameter after 24 hours when taking into production a sig.diff.

enamel recipe, but at least 1 x a year
4.10 adherence < 2 mm min. 3, on test sheets may be conform in production 1 x a day
for medical bathtubs min. 2, > 2 mm min. 2 to EN ISO 28764
4.26 abrasion resistance max. 0.1 gram in accordance with ASTM C501 when taking into production a sig.diff.
sandpaper S33/1kg/1000 rotations enamel recipe (exclusive colour oxides)

but at least 1 x a year
4.28 steel quality in accordance with norm EN 10209 is recommended: determination during design

DC04EK / DC05EK / DC06EK
